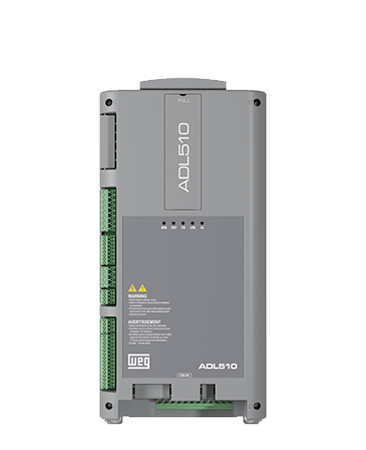

Complete range of product for LIFT | The ADL500 family comprises three product lines: ADL550, ADL530 and ADL510. Designed to meet the diverse demands of high, medium, and low-rise building applications, as well as the building retrofit market. The range extension includes three product lines, four mechanical sizes, and 14 power sizes, spanning from 1.1 to 45 kW. The new ADL500 series integrates cutting-edge functionality, safety features, energy efficiency, and advanced connectivity. | | | | | ADL510 - Low rise elevators and modernization | Designed to be easy to install and simple to startup, ADL510 is the most suitable solution for low-rise and low-demanding elevators in new buildings and modernization. Typically used in open loop with asynchronous motors, it offers also the possibilty to manage simple closed-loop geared systems with integrated digital encoder interface | Power • ADL510-4: 3ph x 400 V (-15% +10%) 50/60 Hz Power Range • ADL510-4: 4-22 kW | | | - Motor type: Geared motors (asynchronous)
- Control mode: Sensorless Scalar control (SSC), Field-Oriented Control CL (Asyn FOC)
- Encoder: digital incremental and sinusoidal interface (TTL / HTL)
- Overload: 183% x 10 s at 0 Hz
- Switching frequency: 10 kHz
- Communication: Modbus TCP
- Rescue operation: UPS or batteries
- 4 wizards: setup, startup, optimization, troubleshooting
- Certifications: CE, ASME, CSA, EAC, RCM, EN81-20, EN81-50

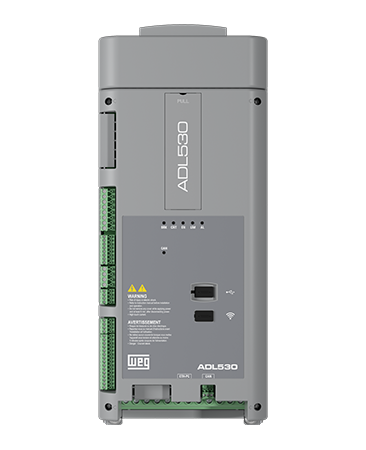

| | | | | ADL530 - Medium rise elevators | Designed to be compatible with all common machine room or MRL elevators with Geared or Gearless traction systems. ADL530 introduce into the elevator industry new concepts for communication and simplicity of use directly addressed to meet users needs in terms of performance and time saving.
Universal encoder interface allow to have only one integrated interface to connect all most used encoders with relevant benefits for your stock, order process and commissioning. In addition the built-in multifunction USB and Wi-Fi communcation allow to simply configure your drive with a pendrive or your mobile phone. | Power • ADL530-4: 3ph x 230-400-460-480 V (-15%+10%) 50/60 Hz • ADL530-2T: 3ph x 200-230 V (-10%+10%) 50/60 Hz Power Range • ADL530-4: 4-45 kW • ADL530-2T: 5.5-22 kW | | | - Motor type: Geared motors (asynchronous)
- Control mode: Sensorless Scalar control (SSC), Field-Oriented Control CL (Asyn FOC)
- Encoder: digital incremental and sinusoidal interface (TTL / HTL)
- Overload: 183% x 10 s at 0 Hz
- Switching frequency: 10 kHz
- Communication: Modbus TCP
- Rescue operation: UPS or batteries
- 4 wizards: setup, startup, optimization, troubleshooting
- Certifications: CE, ASME, CSA, EAC, RCM, EN81-20, EN81-50

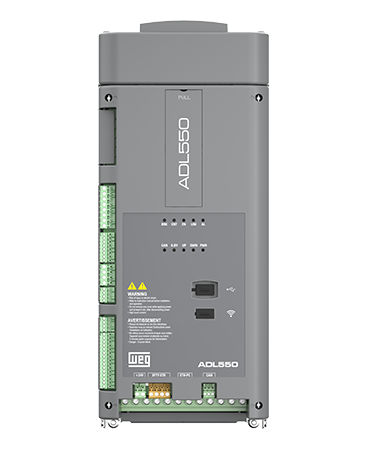

| | | | | ADL550 - High rise and high demanding elevators | Specifically designed for elevators requiring high levels of performance with advanced safety features. ADL550 with enhanced overload up to 200% at 0 Hz and ambient temperature up to 50°C with no derating meets most demanding installations and harsh environments. Even in safety ADL550 goes beyond elevator industry standards adding to the Phase Contactorless (with STO SIL3) the ultimate Brake Contactorless (with Electronic Safe Brake Control SIL3). | Power • ADL550-4: 3ph x 230-400-460-480 V (-15%+10%) 50/60 Hz • ADL550-2T: 3ph x 200-230 V (-10%+10%) 50/60 Hz • ADL550-2M: 1ph x 200-230 V (-10%+10%) 50/60 Hz Power Range • ADL550-4: 4-45 kW • ADL550-2T: 5.5-22 kW • ADL550-2M: 1.1-5.5 kW | | | - Motor type: Geared and Gearless
- Control mode: Sensorless Scalar Control (SSC), Field-Oriented Control CL (Asyn FOC, Syn FOC)
- Encoder: universal encoder
- Overload: 183% x 10s and 200% x 2 s at 0Hz
- Switching frequency: 10kHz
- Communication: Modbus TCP, CAN (Standard CANopen and CANopen DS 417)
- Smart communication: USB and Wi-Fi
- Rescue operation: UPS or batteries
- 4 wizards: set-up, start-up, optimization, troubleshooting
- Safety: Phase Contactorless (STO SIL3), Brake Contactorless (with EBC500 Electronic Safe Brake Control SIL3)
- Ambient temperature: up to 50°C with no derating
- Certifications: CE, ASME, CSA, EAC, RCM, EN81-20, EN81-50

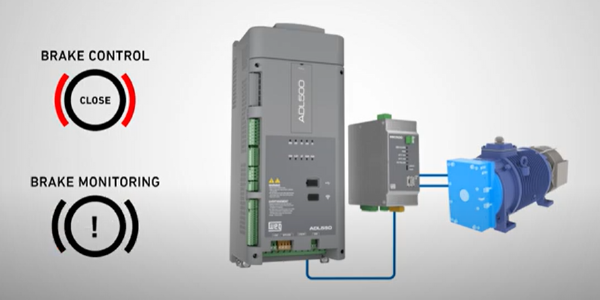

| | | The integration of the ADL550 with the EBC500 accessory enhances the contactorless concept by further reducing the need for contactors and minimizing complexity within the elevator control cabinet. The EBC500 module is an advanced electronic device designed for controlling elevator motor brakes, as well as monitoring and adjusting the voltage and current supplied to the brakes. Its primary objective is to streamline the elevator brake control system by eliminating rectifiers and contactors, all while ensuring maximum safety, improving system efficiency, and reducing maintenance requirements. As a safety-critical component, the EBC500 complies with the European Elevator Standard EN 81-20/50 and is certified as Safe Brake Control SIL 3. | Power • ADL550-4: 3ph x 230-400-460-480 V (-15%+10%) 50/60 Hz • ADL550-2T: 3ph x 200-230 V (-10%+10%) 50/60 Hz • ADL550-2M: 1ph x 200-230 V (-10%+10%) 50/60 Hz Power Range • ADL550-4: 4-45 kW • ADL550-2T: 5.5-22 kW • ADL550-2M: 1.1-5.5 kW | | | WATCH THE VIDEO ON WEG YOUTUBE CHANNEL! | Please feel free to contact us for any information or queries you may have: info.motion@weg.net | | | Copyright © 2025 Elevator World, Inc., All rights reserved. You are receiving this email because you opted in via our website.
